- 編號：61686864
- 頻率：26.000MHz
- 尺寸：11.4mmx4.7mm
AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振
AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELLS系列晶振，編碼為：ELLS-26.000MHz-18-R40-D7-T，頻率為：26.000MHz，小體積晶振尺寸：11.4x4.7mm陶瓷SMD晶體封裝...
TXC,NDK,希華.jpg)
AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELLS系列晶振，編碼為：ELLS-26.000MHz-18-R40-D7-T，頻率為：26.000MHz，小體積晶振尺寸：11.4x4.7mm陶瓷SMD晶體封裝，兩腳貼片晶振，貼片石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。具有小體積，輕薄型，高精度，高性能，高品質，高溫度等特點。進口晶振， 被廣泛應用于：通訊設備，汽車電子，導航儀，無線網絡，藍牙模塊，平板電腦，智能家居，物聯網，醫療設備，安防設備等應用。
格發TXC,NDK,希華.jpg)
AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振,參數表
| STANDARD SPECIFICATIONS | ||||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||||
|
Frequency Range Fundamental AT (Standard) 3rd Overtone (Standard) Fundamental AT or BT (see options) |
26.000 MHz | |||||||||||||||||
| Operation Mode | Fundamental or 3rd Overtone | |||||||||||||||||
| Operating Temperature | 0°C to +70°C, see options | |||||||||||||||||
| Storage Temperature | -55°C to +125°C | |||||||||||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options (For BT cut, ±100ppm max.at -10° C to +60° C only) |
|||||||||||||||||
|
Equivalent Series Resistance (ESR) 3.579545 ≤ F < 4.999 (Fund) 5.000 ≤ F < 5.999 (Fund) 6.000 ≤ F < 7.999 (Fund) 8.000 ≤ F < 8.999 (Fund) 9.000 ≤ F ≤ 9.999 (Fund) 10.000 ≤ F ≤ 15.999 (Fund) 16.000≤ F ≤ 50.000 (Fund) 24.01 ≤ F ≤ 31.999 (3rd O/T) 32.000≤ F ≤ 75.000 (3rd O/T) |
180 Ω 120 Ω 100 Ω 80 Ω 60 Ω 50 Ω 40 Ω 100 Ω 80 Ω |
|||||||||||||||||
| Shunt Capacitance (C0) | 7.0 pF | |||||||||||||||||
| Load Capacitance (CL) |
18 pF, Standard (see options if other than STD) |
|||||||||||||||||
| Drive Level |
100 μWTyp 1000 μW |
|||||||||||||||||
| Aging (@25°C±3°C First year) | ±5ppm | |||||||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||||||||||
| RoHS Compliant | Yes | |||||||||||||||||
| Pb Free | Yes | |||||||||||||||||
| MSL |
N/A |
|||||||||||||||||

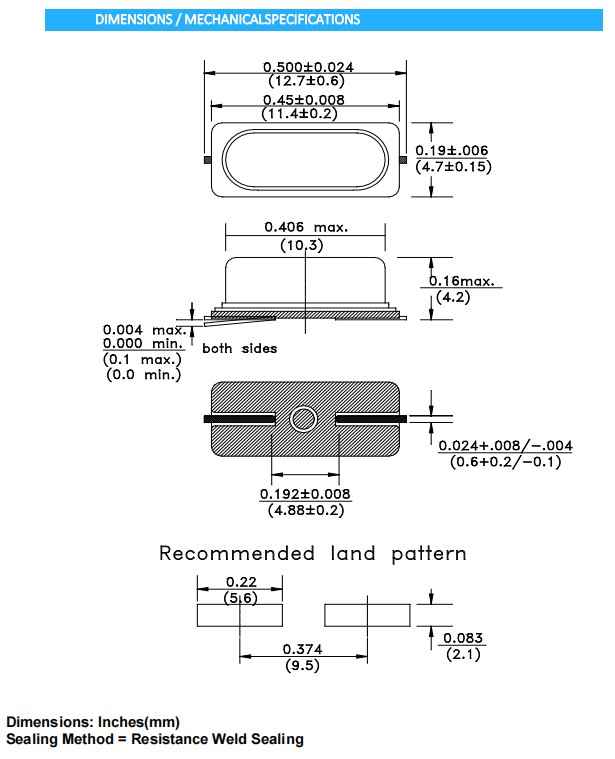

AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振,尺寸圖
AEL石英貼片晶振,ELLS-26.000MHz-18-R40-D7-T,無源晶振
產品特點：
SMD石英晶體諧振器
公差： ±10ppm可用
工作溫度范圍：0°C到+70°C到-55°C到+125°C
格.JPG)
| 產品編碼 | 晶振廠家 | 頻率 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | 10 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | 12 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | 13.56 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | 30 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | 8 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | 16 MHz | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | 32 MHz | 2mm | 1.6mm | 0.5mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | 12 MHz | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | 14 MHz | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | 24 MHz | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | 8.057 MHz | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | 12 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | 12.5829 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | 14.8 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | 18.432 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | 石英晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | 26 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS06-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 2mm | 1.2mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 1.6mm | 1mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | 24 MHz | 1.6mm | 1.2mm | 0.4mm |
