X1G0042410001愛普生差分晶體振蕩器介紹與原廠編碼目錄

來源：http://www.huaxiaqing.com 作者：康華爾電子 2019年11月09
X1G0042410001愛普生差分晶體振蕩器介紹與原廠編碼目錄
　　エプソン水晶デバイス日本精工愛普生株式會社生產的頻率組合比較完整,主要的晶體和振蕩器類型都有制造供應,差分晶體振蕩器是比較高端的一種有源器件,雖然提供差分晶振的廠家有很多,但愛普生晶振品牌的口碑,產能,品質非常滿足廣大用戶的需求,因此使用愛普生品牌的人也更多.愛普生的差分系列產品主要有7050mm,5032mm和3225mm這三種尺寸,系列型號分別對應SG7050,SG5032和SG3225等.
　　這三個系列的料號后面還有不同的后綴,每個后綴在參數規格上會有一些區別,主要是為不同用戶設計的,愛普生的行業標準,固定頻率,差分輸出,簡單封裝的石英晶體振蕩器(SPXO).
主要特點:
　　頻率范圍:從25MHz到700MHz
　　溫度范圍:-40℃至+105℃
　　緊密穩定性:±20ppm,±25ppm,±30ppm,±50ppm,±100ppm
　　電源電壓:2.5V和3.3V(2.375V-3.6V)
　　低功耗:最大低至25mA(SG3225/7050VENLVDS)
　　差分輸出:LV-PECL,LVDS和HCSL
　　三種包裝尺寸:7x5mm、5x3.2mm、3.2x2.5mm

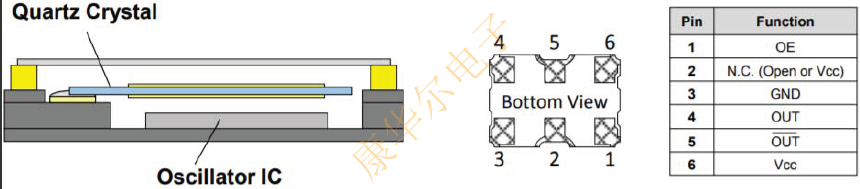

　　愛普生晶振公司提供全套高性能和成本優化的差分SPXO,以匹配任何應用.愛普生是唯一設計和制造晶體和振蕩器IC的供應商,因此可以提供業界最佳質量的高性能產品.愛普生使用傳統的AT切割晶體和PLL提供主流解決方案,以平衡性能和成本.愛普生還使用高頻基本(HFF)晶體來提供最低級別的抖動.愛普生的所有計時產品均僅使用基本模式晶體,以實現卓越的可靠性.
　　愛普生的SPXO差分晶體振蕩器的尺寸從3.2mmx2.5mm至7mmx5mm,覆蓋溫度范圍高達-40℃至+105℃,并通過LV-PECL和LVDS使用行業標準的引腳輸出和HCSL輸出選項.
　　愛普生的固定頻率差分輸出SPXO通過各種行業標準的小型表面貼裝封裝差分晶體振蕩器提供高性能和低功耗,并適合所有應用.
優勢:
　　低抖動
　　體積小
　　擴展溫度
　　嚴格的穩定性
　　低功耗
　　LV-PECL,LVDS和HCSL輸出
晶體技術可實現產品差異化:

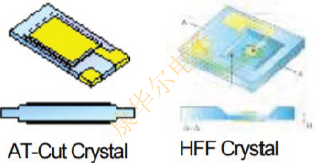

　　為了提高可靠性,愛普生差分輸出SPXO僅使用基本模式晶體.基本晶體不會出現第三泛音設計常見的模式跳躍或冷啟動問題.愛普生僅使用基本晶體,使用三種架構為在所有頻率上的低抖動,低成本和可靠操作提供最佳解決方案:
　　•使用氫氟酸(HF)蝕刻HFF-HFF晶體,以形成具有薄諧振區域的倒置臺面.HFF晶體像第三泛音晶體一樣具有基本晶體的可靠性,可實現高頻和低抖動.愛普生HFF差分晶體振蕩器實現了業界最低的抖動,在156.25MHz時抖動低至50fs.
　　•AT+PLL–SG3225EAN/VAN,SG5032EAN/VAN和SG7050EAN/VAN將AT晶體與PLLIC結合在一起,以低成本實現了高頻(高達700MHz).抖動通常為300fs,高于HFF設計,但對于大多數應用而言足夠低.
完整的產品線:

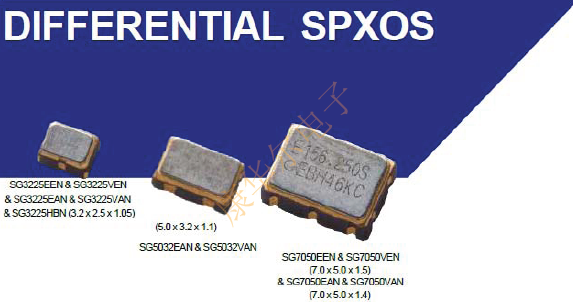

　　愛普生擁有完整的差分晶振SPXO產品線,覆蓋25至700MHz,封裝尺寸從3.2mmx2.5mm至7mmx5mm.
產品 輸出 體系結構 尺寸 頻率(MHz) 電壓(V) ICC,最大(mA)
SG3225EEN LV-PECL HFF 3.2x2.5x1.05 25~200 2.5V~3.3V 75
SG3225VEN LVDS HFF 3.2x2.5x1.05 25~200 2.5V~3.3V 25
SG3225EAN LV-PECL AT+PLL 3.2x2.5x1.05 50~700 2.25V~3.63V 65
SG3225VAN LVDS AT+PLL 3.2x2.5x1.05 73.5~700 2.25V~3.63V 30
SG3225HBN HCSL HFF 3.2x2.5x1.05 100~325 3.3V 35
SG5032EAN LV-PECL AT+PLL 5.0x3.2x1.0 73.5~700 2.25V~3.63V 65
SG5032VAN LVDS AT+PLL 5.0x3.2x1.0 73.5~700 2.25V~3.63V 30
SG7050EEN LV-PECL HFF 7.0x5.0x1.5 25~200 2.5V~3.3V 75
SG7050VEN LVDS HFF 7.0x5.0x1.5 25~200 2.5V~3.3V 25
SG7050EAN LV-PECL AT+PLL 7.0x5.0x1.4 73.5~700 2.5V~3.3V 65
SG7050VAN LVDS AT+PLL 7.0x5.0x1.4 73.5~700 2.5V~3.3V 30
穩定性和工作溫度選項如下所示:
SG3225EAN晶振/VAN&SG5032EAN晶振/VAN&SG7050EAN/VAN頻率溫度變化
SG3225EAN晶振/VAN&SG5032EAN晶振/VAN&SG7050EAN/VAN
CB:±20ppm/-20℃~70℃
EB:±30ppm/-20℃~70℃
EG:±30ppm/-40℃~85℃
JB:±50ppm/-20℃~70℃
JG:±50ppm/-40℃~85℃
SG3225HBN頻率溫度變化
SG3225HBN
LG:±100ppm/-40℃~85℃
JG:±50ppm/-40℃~85℃
SG3225EEN/VEN&SG7050EEN/VEN頻率溫度變化
SG3225EEN/VEN&SG7050EEN/VEN
DG:±25ppm/-40℃~85℃
JG:±50ppm/-40℃~85℃
JH:±50ppm/-40℃~105℃
LG:±100ppm/-40℃~85℃
LH:±100ppm/-40℃~105℃
　　可編程SPXO:愛普生的SG-8503可編程晶振與引腳兼容,交貨周期非常短,可以快速制作原型.如果以上提供的參考規格中,沒有你需要的,可以聯系康華爾電子0755-27838351,我們將會與原廠聯系,為你的特殊要求定制專屬的方案.我們熱衷于為每一位客戶解決任何與晶振相關的問題,客戶的滿意,就是我們的追求!以下是愛普生差分晶體振蕩器系列的原廠代碼,可供廣大新老用戶參考.
X1G0042410001 SG3225VAN晶振 125.000000MHz 3.20x2.50x1.20mm
X1G0042410002 SG3225VAN晶振 125.006250MHz 3.20x2.50x1.20mm
X1G0042410004 SG3225VAN晶振 100.000000MHz 3.20x2.50x1.20mm
X1G0042410005 SG3225VAN晶振 200.000000MHz 3.20x2.50x1.20mm
X1G0042410007 SG3225VAN晶振 106.250000MHz 3.20x2.50x1.20mm
X1G0042410011 SG3225VAN晶振 75.000000MHz 3.20x2.50x1.20mm
X1G0042410012 SG3225VAN晶振 150.000000MHz 3.20x2.50x1.20mm
X1G0042410014 SG3225VAN晶振 156.250000MHz 3.20x2.50x1.20mm
X1G0042410020 SG3225VAN晶振 125.000000MHz 3.20x2.50x1.20mm
X1G0042410021 SG3225VAN晶振 125.006250MHz 3.20x2.50x1.20mm
X1G0042410023 SG3225VAN晶振 100.000000MHz 3.20x2.50x1.20mm
X1G0042410024 SG3225VAN晶振 200.000000MHz 3.20x2.50x1.20mm
X1G0042410026 SG3225VAN晶振 106.250000MHz 3.20x2.50x1.20mm
X1G0042410030 SG3225VAN晶振 75.000000MHz 3.20x2.50x1.20mm
X1G0042410031 SG3225VAN晶振 150.000000MHz 3.20x2.50x1.20mm
X1G0042410033 SG3225VAN晶振 156.250000MHz 3.20x2.50x1.20mm
X1G0042410039 SG3225VAN晶振 125.000000MHz 3.20x2.50x1.20mm
X1G0042410040 SG3225VAN晶振 125.006250MHz 3.20x2.50x1.20mm
X1G0042410042 SG3225VAN晶振 100.000000MHz 3.20x2.50x1.20mm
X1G0042410043 SG3225VAN晶振 200.000000MHz 3.20x2.50x1.20mm
X1G0042410045 SG3225VAN晶振 106.250000MHz 3.20x2.50x1.20mm
X1G0042510012 SG3225EAN晶振 75.000000MHz 3.20x2.50x1.20mm
X1G0042510013 SG3225EAN晶振 150.000000MHz 3.20x2.50x1.20mm
X1G0042510051 SG3225EAN晶振 150.000000MHz 3.20x2.50x1.20mm
X1G0042510053 SG3225EAN晶振 156.250000MHz 3.20x2.50x1.20mm
X1G0042510059 SG3225EAN晶振 125.000000MHz 3.20x2.50x1.20mm
X1G0042510060 SG3225EAN晶振 125.006250MHz 3.20x2.50x1.20mm
X1G0042510062 SG3225EAN晶振 100.000000MHz 3.20x2.50x1.20mm
X1G0042510063 SG3225EAN晶振 200.000000MHz 3.20x2.50x1.20mm
X1G0042510091 SG3225EAN晶振 50.000000MHz 3.20x2.50x1.20mm
X1G0042510104 SG3225EAN晶振 250.000000MHz 3.20x2.50x1.20mm
X1G0042510106 SG3225EAN晶振 80.000000MHz 3.20x2.50x1.20mm
X1G0042510111 SG3225EAN晶振 133.330000MHz 3.20x2.50x1.20mm
X1G0042510114 SG3225EAN晶振 320.000000MHz 3.20x2.50x1.20mm
X1G0042510115 SG3225EAN晶振 500.000000MHz 3.20x2.50x1.20mm
X1G0042610069 SG5032VAN晶振 150.000000MHz 5.00x3.20x1.20mm
X1G0042610071 SG5032VAN晶振 156.250000MHz 5.00x3.20x1.20mm
X1G0042610079 SG5032VAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042610083 SG5032VAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042610087 SG5032VAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042710024 SG5032EAN晶振 200.000000MHz 5.00x3.20x1.20mm
X1G0042710026 SG5032EAN晶振 106.250000MHz 5.00x3.20x1.20mm
X1G0042710030 SG5032EAN晶振 75.000000MHz 5.00x3.20x1.20mm
X1G0042710031 SG5032EAN晶振 150.000000MHz 5.00x3.20x1.20mm
X1G0042710033 SG5032EAN晶振 156.250000MHz 5.00x3.20x1.20mm
X1G0042710038 SG5032EAN晶振 700.000000MHz 5.00x3.20x1.20mm
X1G0042710039 SG5032EAN晶振 125.000000MHz 5.00x3.20x1.20mm
X1G0042710040 SG5032EAN晶振 125.006250MHz 5.00x3.20x1.20mm
X1G0042710042 SG5032EAN晶振 100.000000MHz 5.00x3.20x1.20mm
X1G0042710043 SG5032EAN晶振 200.000000MHz 5.00x3.20x1.20mm
X1G0042710045 SG5032EAN晶振 106.250000MHz 5.00x3.20x1.20mm
X1G0042710049 SG5032EAN晶振 75.000000MHz 5.00x3.20x1.20mm
X1G0042710050 SG5032EAN晶振 150.000000MHz 5.00x3.20x1.20mm
X1G0042710052 SG5032EAN晶振 156.250000MHz 5.00x3.20x1.20mm
X1G0042710058 SG5032EAN晶振 125.000000MHz 5.00x3.20x1.20mm
X1G0042710059 SG5032EAN晶振 125.006250MHz 5.00x3.20x1.20mm
X1G0042710061 SG5032EAN晶振 100.000000MHz 5.00x3.20x1.20mm
X1G0042710062 SG5032EAN晶振 200.000000MHz 5.00x3.20x1.20mm
X1G0042710064 SG5032EAN晶振 106.250000MHz 5.00x3.20x1.20mm
X1G0042710068 SG5032EAN晶振 75.000000MHz 5.00x3.20x1.20mm
X1G0042710069 SG5032EAN晶振 150.000000MHz 5.00x3.20x1.20mm
X1G0042710071 SG5032EAN晶振 156.250000MHz 5.00x3.20x1.20mm
X1G0042710079 SG5032EAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042710083 SG5032EAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042710087 SG5032EAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042710091 SG5032EAN晶振 50.000000MHz 5.00x3.20x1.20mm
X1G0042710109 SG5032EAN晶振 250.000000MHz 5.00x3.20x1.20mm
X1G0042710111 SG5032EAN晶振 80.000000MHz 5.00x3.20x1.20mm
X1G0042710115 SG5032EAN晶振 133.330000MHz 5.00x3.20x1.20mm
X1G0042810001 SG7050VAN晶振 125.000000MHz 7.00x5.00x1.60mm
X1G0042810002 SG7050VAN晶振 125.006250MHz 7.00x5.00x1.60mm
X1G0042810004 SG7050VAN晶振 100.000000MHz 7.00x5.00x1.60mm
X1G0042810005 SG7050VAN晶振 200.000000MHz 7.00x5.00x1.60mm
X1G0042810007 SG7050VAN晶振 106.250000MHz 7.00x5.00x1.60mm
X1G0042810011 SG7050VAN晶振 75.000000MHz 7.00x5.00x1.60mm
X1G0042810012 SG7050VAN晶振 150.000000MHz 7.00x5.00x1.60mm
X1G0042810014 SG7050VAN晶振 156.250000MHz 7.00x5.00x1.60mm
X1G0042810020 SG7050VAN晶振 125.000000MHz 7.00x5.00x1.60mm
X1G0042810021 SG7050VAN晶振 125.006250MHz 7.00x5.00x1.60mm
X1G0042810023 SG7050VAN晶振 100.000000MHz 7.00x5.00x1.60mm
X1G0044710016 SG5032CCN晶振 11.059200MHz 5.00x3.20x1.30mm
X1G0044710017 SG5032CCN晶振 12.288000MHz 5.00x3.20x1.30mm
X1G0044710020 SG5032CCN晶振 24.000000MHz 5.00x3.20x1.30mm
X1G0044710021 SG5032CCN晶振 24.576000MHz 5.00x3.20x1.30mm
X1G0044710022 SG5032CCN晶振 27.000000MHz 5.00x3.20x1.30mm
X1G0044710031 SG5032CCN晶振 33.330000MHz 5.00x3.20x1.30mm
X1G0044710034 SG5032CCN晶振 12.000000MHz 5.00x3.20x1.30mm
X1G0044710035 SG5032CCN晶振 16.700000MHz 5.00x3.20x1.30mm
X1G0044710041 SG5032CCN晶振 11.289600MHz 5.00x3.20x1.30mm
X1G0044810001 SG7050CAN晶振 12.288000MHz 7.00x5.00x1.50mm
X1G0044810002 SG7050CAN晶振 24.000000MHz 7.00x5.00x1.50mm
X1G0044810003 SG7050CAN晶振 25.000000MHz 7.00x5.00x1.50mm
X1G0044810004 SG7050CAN晶振 27.000000MHz 7.00x5.00x1.50mm
X1G0044810005 SG7050CAN晶振 10.000000MHz 7.00x5.00x1.50mm
X1G0044810006 SG7050CAN晶振 12.000000MHz 7.00x5.00x1.50mm
X1G0044810007 SG7050CAN晶振 16.000000MHz 7.00x5.00x1.50mm
